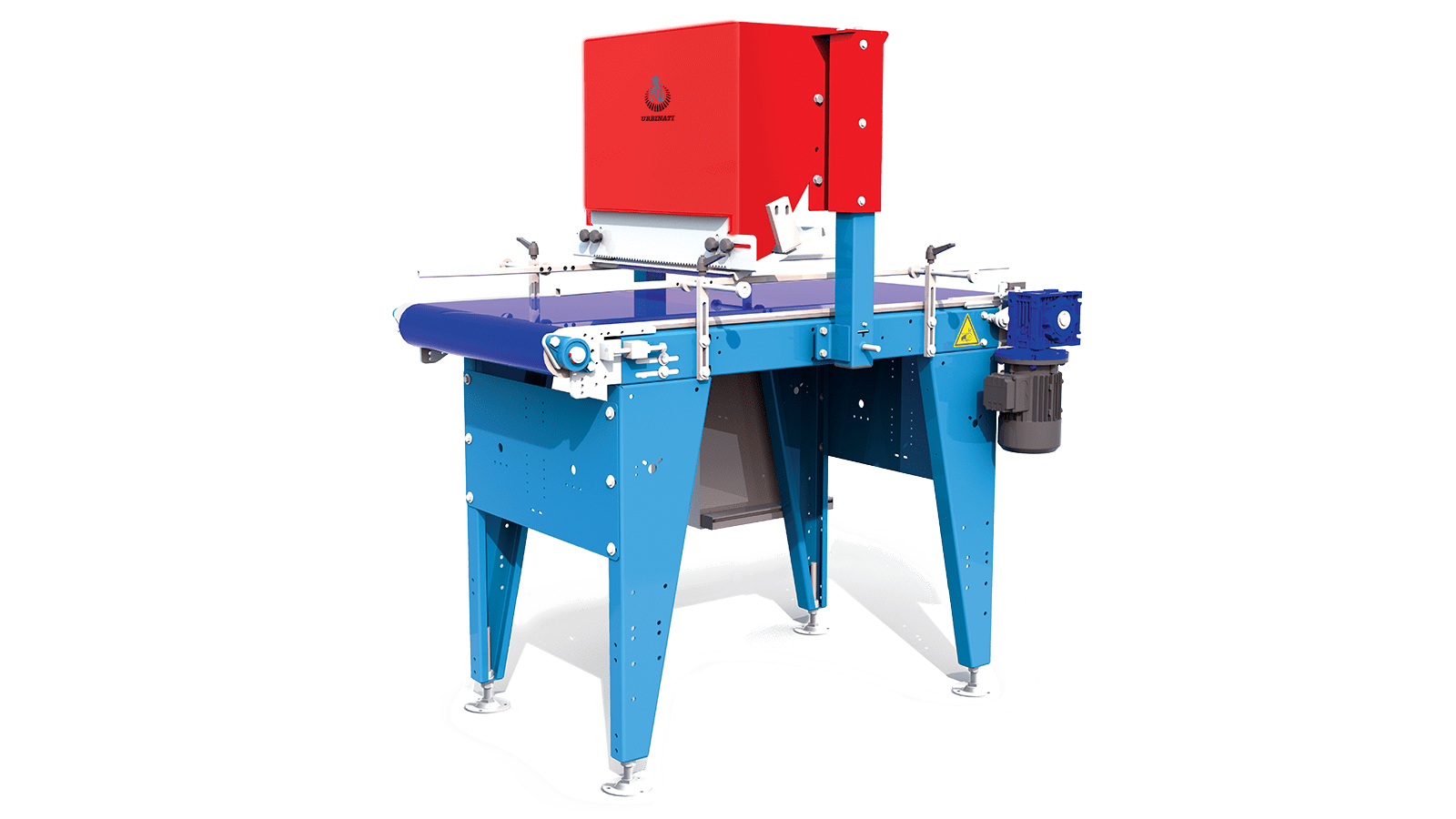

Urbinati SEMVIB Seeder

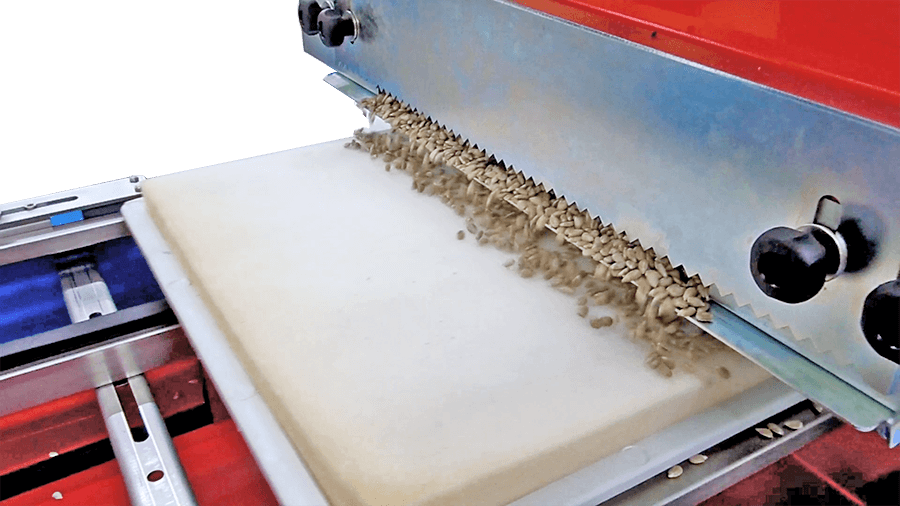

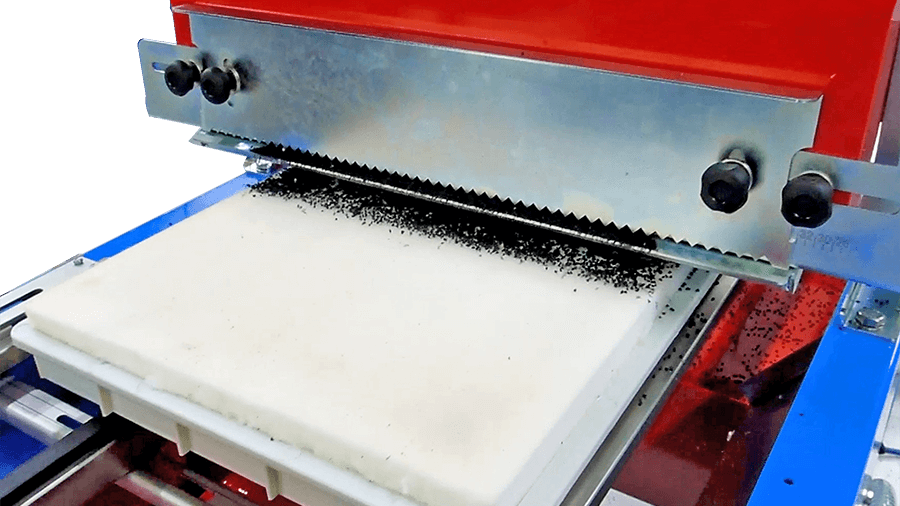

The SEMVIB vibrating seeder combines the technique of spread sowing with the efficiency of a feeding belt system.

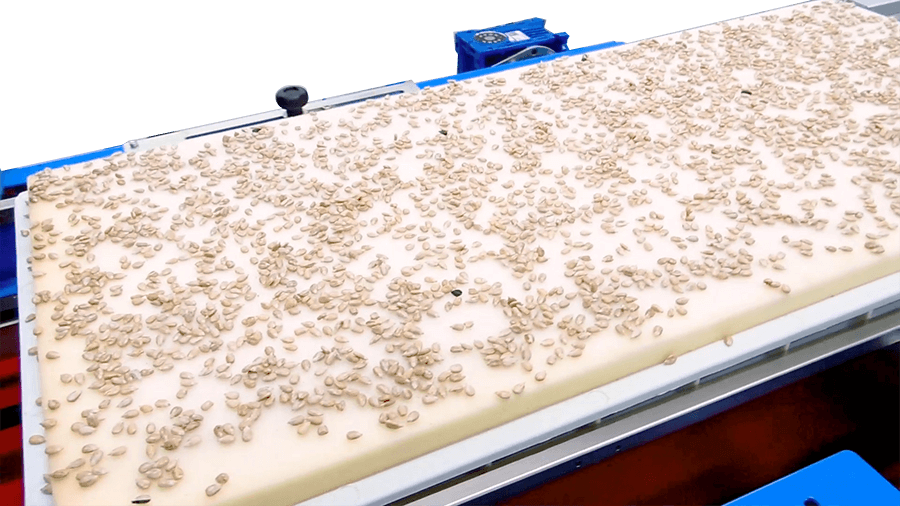

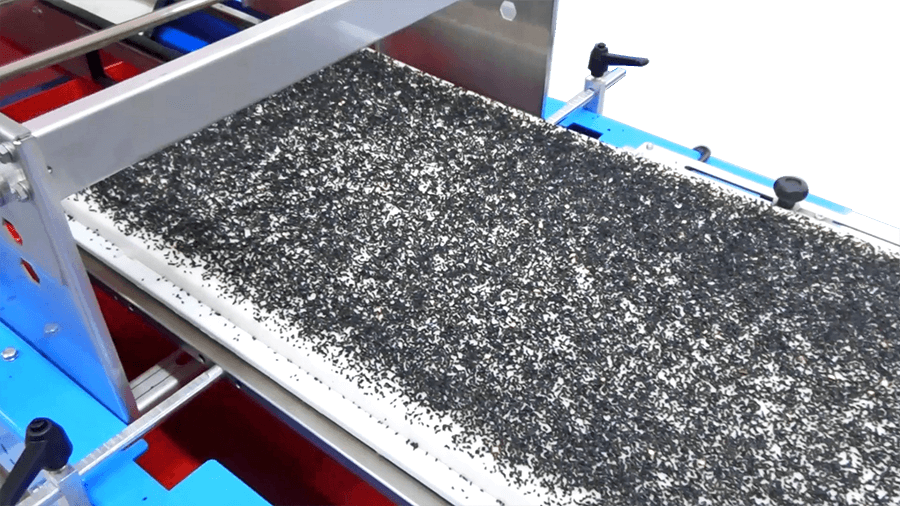

The open trays are quickly covered with seeds of medium-large size. Particularly suitable for microgreens and herbs sowing. More generally, for concentrations of seed to be deposited equal to or greater than 10 units per square centimeter.

Frame length L = 1300 mm and electronically adjustable speed conveyor belt. Vibration intensity of the seed-plate pneumatically controlled. Height easly adjustable hopper with crank.

The SEMVIB seeder can be used both as a single machine and integrated in a working line.

Urbinati SEMVIB Seeder

	M.U	SEMPOT	SEMVOL	SEMVIB
HOURLY PRODUCTION (min-max)	pots/rows/containers/hour	1500	1500	600
DIMENSIONS of POTS/CONTAINERS (max)	mm	9-14	350	400
HOPPER CAPACITY (standard)	l	55	55	55
WEIGHT	Kg	60	185	165
VACUUM PUMP	Model	Venturi System	Venturi System	Venturi System
AIR CONSUMPTION (max)	l/min	100	100	100
NOZZLE KIT	mm	0,20 - 0,25 - 0,30 - 0,35 - 0,40 - 0,50 - 0,60 - 0,70

Urbinati SEMVIB Seeder

Urbinati SEMSF13 Row Seeder

Urbinati SEMVIB Seeder

Urbinati SEMVIB Seeder

Pots diameter 9-14 cm
Photoeye for pot detection
Larger venturi for large seeds
Silicon nozzles
Stronger Vacuum
Movement of the seeding table with automatic step.

Sowing bar up to 11 nozzles, single or multi-hole
Silicone nozzles with brass end.
Multi-seeds nozzles
230V single-phase power supply
Tube descent bar. Inner diameter available for the descent tubes: 6, 8, 12 or 17 mm.

Tube descent bar. Inner diameter available for the descent tubes: 6, 8, 12 or 17 mm.

Silicon nozzles Silicone nozzles with brass end. Multi-seeds nozzles Stronger Vacuum

Urbinati SEMVIB Seeder

Overview
Specifications
PDF
Enquiry

Urbinati SEMVIB Seeder

The SEMVIB vibrating seeder combines the technique of spread sowing with the efficiency of a feeding belt system.

The open trays are quickly covered with seeds of medium-large size. Particularly suitable for microgreens and herbs sowing. More generally, for concentrations of seed to be deposited equal to or greater than 10 units per square centimeter.

Frame length L = 1300 mm and electronically adjustable speed conveyor belt. Vibration intensity of the seed-plate pneumatically controlled. Height easly adjustable hopper with crank.

The SEMVIB seeder can be used both as a single machine and integrated in a working line.
