Urbinati Trolley Loader

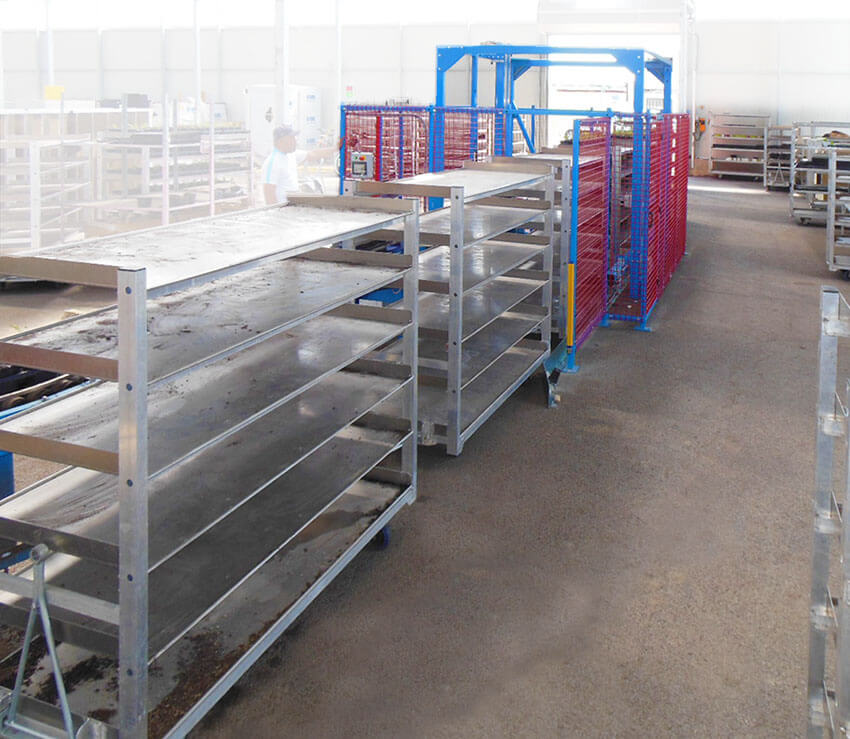

The Urbinati Trolley loader is a machine for the automatic loading of the trays on the trolleys’ shelves, both for standard and non-standard trolleys, up to a maximum height of 2855 mm. Version FRAMES are also available

Trolleys positioned with 2250 mm stroke double pneumatic block for the trolleys, includes fencing, safety guards with access doors, and stores up to 99 programs. Available in right and left solutions.

Available as ACCESSORIES: to work with non-standard trolleys; electromechanical pusher to load more than one row of trays on the same shelf.

Urbinati Trolley Loader

	M.U	CARICATORECC
HOURLY PRODUCTION (min-max)	cycle/hour	250
DIMENSIONS of TROLLEY (standard)	mm	1350 x 656 x 2250
HEIGHT of TROLLEY (max)	mm	2855
POWER of INSTALLATION	kW	4
CONSUMPTION of AIR (max)	l/min	20
WEIGHT (standard vers.)	kg	1300
